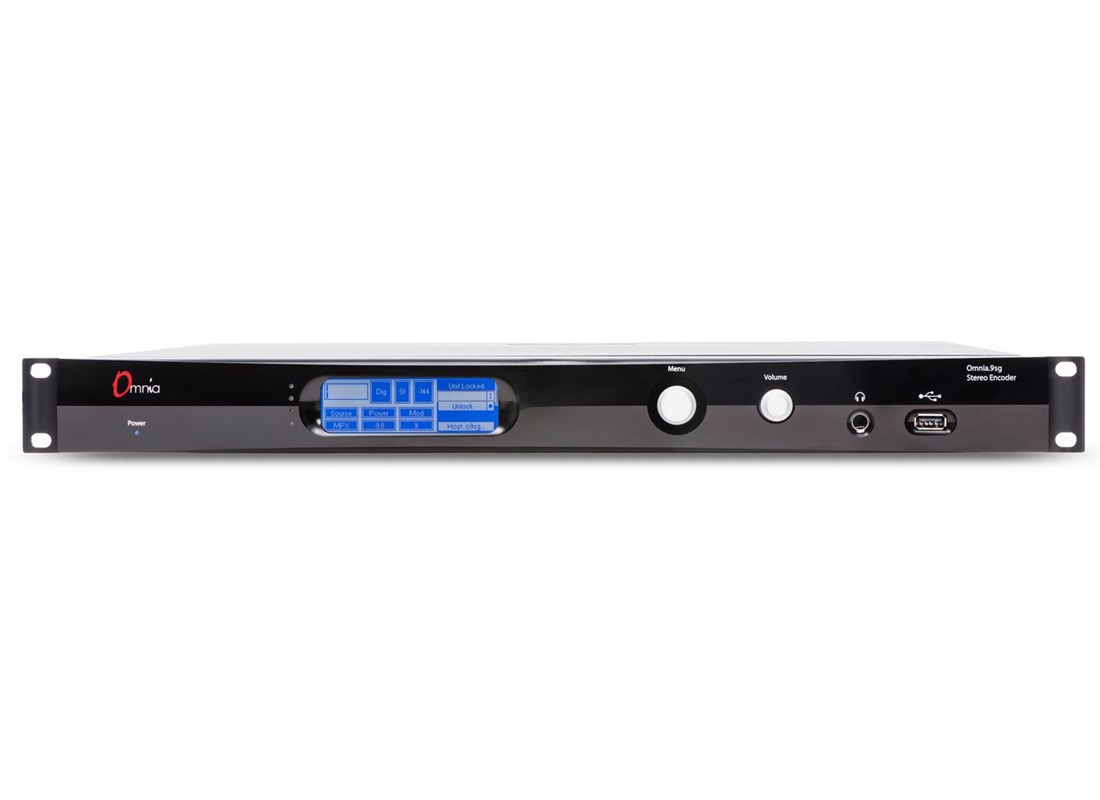

Omnia OMNIA9SG-RDS

Main Features:
• Psychoacoustic Composite Embedder allows up to 140% audio peaks in stereo at 100% total modulation.
• Full IP remote control with remote audio streaming
• Optional RDS encoder
• Selectable SSB (Single Sideband) stereo encoder
• Analysis tools for internal or external composite signals

Specifications:
• Frequency Response: +/- .5 dB 20 Hz to 15 kHz
• Signal-Noise Ratio: Greater than -80 dBu de-emphasized, 20 Hz to 15 kHz
• Stereo Separation: 65dB minimum, 20 Hz to 15 kHz, 70 dB typical
• Stereo Baseband Output: Adjustable from -2 dBu to +22 dBu (0.1 dB increments) into 600-Ohms, 20-Ohm output impedance
• Analog Inputs: Two balanced, EMI filtered XLR connectors
• Digital Inputs: AES/EBU In & External Sync
• Composite I/O: Four 75-Ohm BNC female, two inputs, two outputs
• Remote Control: RJ45 supporting 100 Base-T Ethernet connections
• Power Requirements: 100-264 VAC, 47-63 Hz autosensing
• Power Connector: IEC male, detachable 3-wire power cord supplied
• Environmental: Operating: 0 to 50 degrees C Non-Operating: -20 to 70 degrees C
